Socket Accessories
Product Range

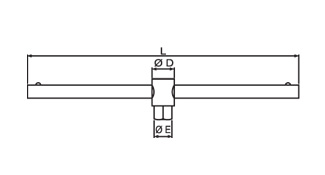

T-Handle
-
View Details
SIZE PROD. NO A/F L ΘD ΘE ΘF WT. GMS 1/4" Drive A 733 6.30 115 14 8.0 6 45 3/8" Drive B 733 9.50 200 19 12.6 10.5 75 1/2" Drive 1733-S 12.7 250 27 16.6 13 345 1733 12.7 300 27 16.6 13 400 3/4" Drive 2733 19.0 500 38 24.5 18 1220 1" Drive 3733 25.2 630 49 33.8 25 2970

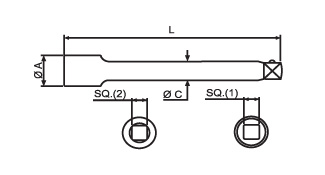

Extension Bar
-
View Details
SIZE PROD. NO L ΘA ΘB ΘD SQ.(1) SQ.(2) WT. GMS 1/4" Drive A 743 50 12 - 8.0 6.40 6.30 25 A 753 100 12 - 8.0 6.40 6.30 45 3/8" Drive B 743 76 18 - 12.0 9.60 9.50 75 B 753 152 18 - 12.0 9.60 9.50 140 1/2" Drive 1713 50 22 - 12.8 12.8 12.8 85 1743 75 22 - 12.8 12.8 12.8 110 1753 125 22 - 12.8 12.8 12.8 150 1763 255 22 - 12.8 12.8 12.8 290 3/4" Drive 2753 255 35 - 19.1 19.1 19.1 700 2763 385 35 - 19.1 19.1 19.1 980 1" Drive 3753 200 48 - 29.0 25.2 25.8 1320 3763 400 48 - 29.0 25.2 25.8 2410

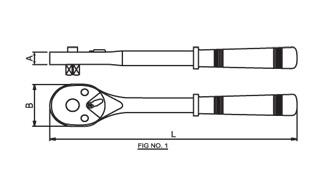

Ratchet Handle
-
View Details
SIZE PROD. NO FIG. NO A B L WT. GMS 1/4" Drive A 715 1 12 27 160 135 3/8" Drive B 715 1 13 27 215 340 1/2" Drive 1715 2 18 35 255 480 3/4" Drive 2715 with Sq. Coupler - 30 65 500 2040 1" Drive 3715 R-H 1 32 69 - - T-BAR 2 Θ28 - 562 2680

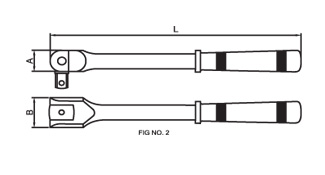

Flexible Handle
-
View Details
SIZE PROD. NO FIG. NO A B L WT. GMS 1/4" Drive A 703 2 11 16.5 145 115 3/8" Drive B 703 2 15 22 225 215 1/2" Drive 1703 1 20 25 250 390

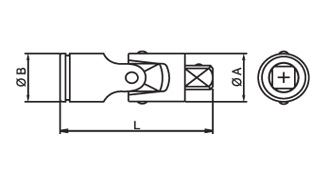

Universal Joint
-
View Details
SIZE PROD. NO FIG. NO A B L WT. GMS 1/4" Drive A 773 3 14 14 39 25 3/8" Drive B 773 3 19 19 55 65 1/2" Drive 1773 3 25 22 74 160
